RF Transceiver amiccom_logo.png

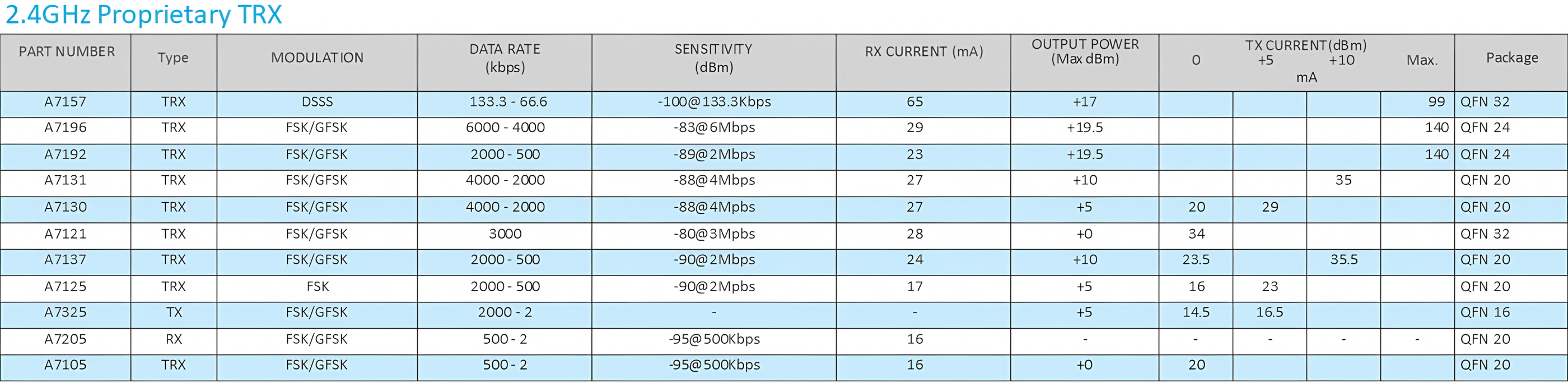

2.4GHz Proprietary TRX

Part No.Type ModulationData Rate
(kbps)
Sensitivity
(dBm)
RX Current
(mA)
Output
Power
(Max dBm)
TX Current(dBm) Package
0 +5 +10 Max
mA
A7196 TRX FSK/GFSK 6000 - 4000 -84@6Mbps 29 +19.5 - - - 140 QFN 24
A7190 TRX FSK/GFSK 4000 - 2000 -87@4Mbps 28 +20 - - - 183 QFN 24
A7131 TRX FSK/GFSK 4000 - 2000 -88@4Mbps 27 +10 - - 35 - QFN 20
A7130 TRX FSK/GFSK 4000 - 2000 -88@4Mbps 27 +5 20 29 - - QFN 20
A7121 TRX FSK/GFSK 3000 -80@3Mbps 28 +0 34 - - - QFN 20
A7137 TRX FSK/GFSK 2000 ~ 500 -90@2Mbps 24 +10 _ - 35.5 - QFN 20
A7137 TRX FSK/GFSK 2000 ~ 500 -90@2Mbps 24 +10 - - 35.5 - QFN 20
A7125 TRX FSK 2000 ~ 500 -90@2Mbps 17 +5 16 23 - - QFN 20
A7325 TX FSK/GFSK 2000 ~ 2 - - +5 14.5 16.5 - - QFN 16
A7205 RX FSK/GFSK 500 ~ 2 -95@500Kbps 16 - - - - - QFN 20
A7105 TRX FSK/GFSK 500 ~ 2 -95@500Kbps 16 +0 20 - - - QFN 20

2.4GHz RC Car

Part No.Type ModulationData Rate
(kbps)
Sensitivity
(dBm)
RX Current
(mA)
Output
Power
(Max dBm)
TX Current
(dBm)
Package
A7216 RX FSK 500 -96@500Kbps 18 - - SSOP24
A7316 TX FSK 500 - - +4 22 SSOP24

PA / LAN

Part No.Type Frequency
(Mhz)
Sleep Current
(uA)
RX Current
(mA)
Output
Power
(Max dBm)
TX Current
(dBm)
Package
A7700 PA/LAN 2400 - 2483.5 1 4.3 19 102@19dBm QFN 16

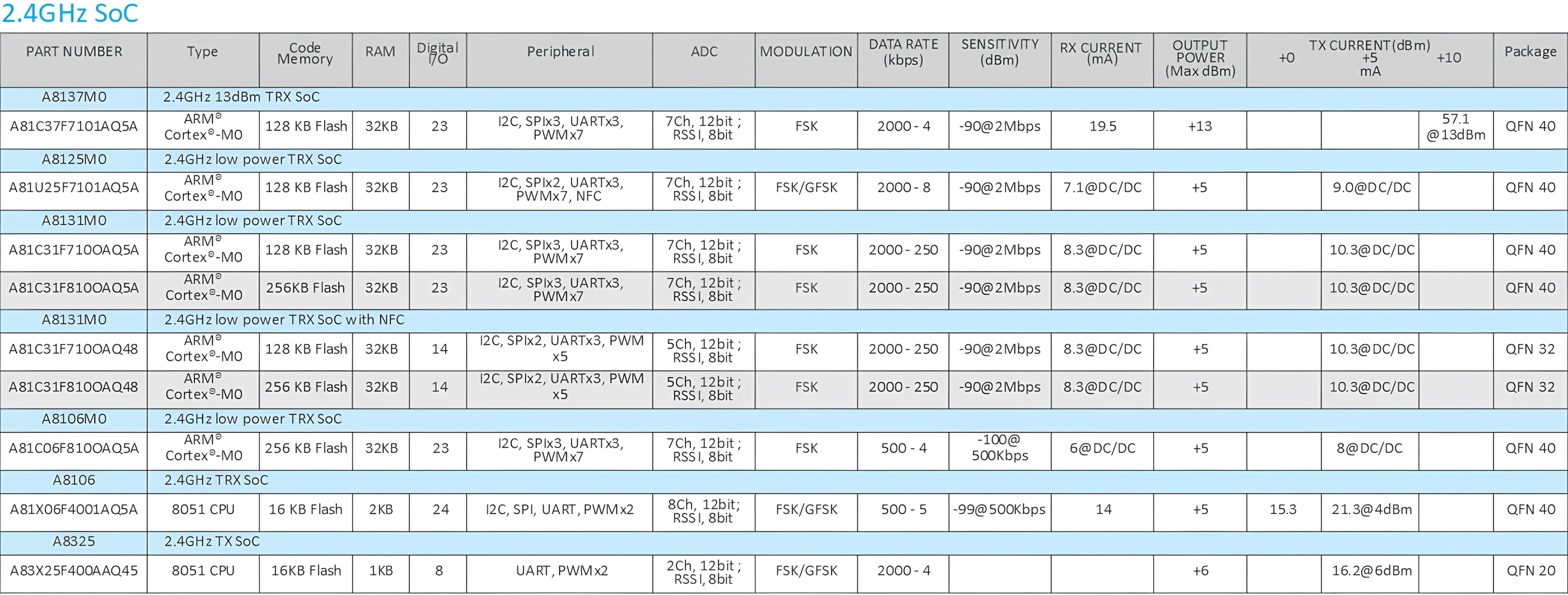

2.4GHz SoC

Part No.Type Code
Memory
RAM Digital
I/O
Peripheral ADC ModulationData Rate
(kbps)
Sensitivity
(dBm)
RX Current
(mA)
Output
Power
(Max dBm)
TX Current(dBm) Package
+0 +5 +10
mA
A8137 2.4GHz 10dBm
TRX SoC
A81X37F4000AQ5A 8051 CPU 16 KB Flash 256B 24 I2C, SPI, UART,
PWM x2
4Ch, 8bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 4 -90@2Mbps 24 +10 - - 40 QFN 40
A81X37F4005AQ58 8051 CPU 16 KB Flash 256B 17 I2C, SPI, UART,
PWM x1
2Ch, 8bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 4 -90@2Mbps 24 +10 - - 40 QFN 32
A81X37T4000AQ5A 8051 CPU 16 KB OTP 256B 23 I2C, SPI, UART,
PWM x3
7Ch, 8bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 4 -90@2Mbps 27.5 +10 - - 47 QFN 40
A81X37T4005AQ58 8051 CPU 16 KB OTP 256B 16 I2C, SPI, UART,
PWM x2
4Ch, 8bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 4 -90@2Mbps 27.5 +10 - - 47 QFN 32
A8125 2.4GHz TRX
TRX SoC
A81X25F4000AQ5A 8051 CPU 16 KB Flash 256B 24 I2C, SPI, UART,
PWM x2
4Ch, 8bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 4 -90@2Mbps 24 +5 - 24 - QFN 40
A81X25F4005AQ58 8051 CPU 16 KB Flash 256B 17 I2C, SPI, UART,
PWM x1
2Ch, 8bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 4 -90@2Mbps 24 +5 - 24 - QFN 32
A81X25T4000AQ5A 8051 CPU 16 KB OTP 256B 23 I2C, SPI, UART,
PWM x3
7Ch, 8bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 4 -90@2Mbps 27.5 +5 - 28 - QFN 40
A81X25T4005AQ58 8051 CPU 16 KB OTP 256B 16 I2C, SPI, UART,
PWM x2
4Ch, 8bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 4 -90@2Mbps 27.5 +5 - 28 - QFN 32
A8125 2.4GHz TRX
TRX SoC
A81X06F400EAQ7E 8051 CPU 16 KB Flash 2KB 24 I2C, SPI, UART,
PWM x2
8Ch, 12bit;
RSSI, 8bit
FSK/GFSK 500 ~ 4 -90@500Mbps 19 +5 22 24@4dBm - QFN 56
A81X06F4001AQ5A 8051 CPU 16 KB Flash 2KB 24 I2C, SPI, UART,
PWM x2
8Ch, 12bit;
RSSI, 8bit
FSK/GFSK 500 ~ 4 -90@500Mbps - +5 22 24@4dBm - QFN 40
A81X06T4001AQ5A 8051 CPU 16 KB OTP 2KB 23 I2C, SPI, UART,
PWM x2
8Ch, 12bit;
RSSI, 8bit
FSK/GFSK 500 ~ 4 -90@500Mbps - +5 22 24@4dBm - QFN 40
A81X06T3001AQ5A 8051 CPU 8 KB OTP 2KB 23 I2C, SPI, UART,
PWM x2
8Ch, 12bit;
RSSI, 8bit
FSK/GFSK 500 ~ 4 -90@500Mbps 19 +5 22 24@4dBm - QFN 40
A8108 2.4GHz TRX
USB SoC
A81X08F5004AQ58 8051 CPU 32 KB Flash 512 B 14 USB, UART 8Ch, 12bit;
RSSI, 8bit
FSK/GFSK 500 ~ 2 -90@500Mbps 19 +5 22 24@4dBm - QFN 32
A81X08T4004AQ58 8051 CPU 16 KB OTP 512 B 13 USB, UART 8Ch, 12bit;
RSSI, 8bit
FSK/GFSK 500 ~ 2 -90@500Mbps 19 +5 22 24@4dBm - QFN 32
A8108 2.4GHz TRX
USB SoC
A83X25T3008AQ46 8051 CPU 8 KB OTP 1KB 12 I2C, SPI, UART 4Ch, 12bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 2 - - +5 14 17 - QFN 24
A83X25T300AAQ45 8051 CPU 8 KB OTP 1KB 8 UART 2Ch, 12bit;
RSSI, 8bit
FSK/GFSK 2000 ~ 2 - - +5 14 17 - QFN 20

Wireless Audio / Voice SoC

Part No.  Type Code
Memory
RAM Digital
I/O
Peripheral ADC Audio
Codec
ModulationFrequency
(MHZ)
Data Rate
(kbps)
Sensitivity
(dBm)
RX Current
(mA)
Output
Power
(Max dBm)
TX Current(dBm) Package
A8100 Wireless
Audio SoC
A81X00T400CAQ6C 8051 CPU 16 KB OTP 512 B 23 I2C, SPI, UART,
PWM x4
7Ch, 8bit;
RSSI, 8bit
16 bits FSK/GFSK 2400 - 2483.5 2000 - 500 -90@2Mbps 29 10 45@10dBm QFN 48
A81X00T4000DQ5A 8051 CPU 16 KB OTP 512 B 16 I2C, SPI, UART,
PWM x2
4Ch, 8bit;
RSSI, 8bit
16 bits FSK/GFSK 2400 - 2483.5 2000 - 500 -90@2Mbps 29 10 45@10dBm QFN 40
A8101 Wireless
Audio SoC
A81X01F4000AQ6C 8051 CPU 16 KB Flash 512 B 24 I2C, SPI, UART,
PWM x2
4Ch, 8bit;
RSSI, 8bit
16 bits FSK/GFSK 2400 - 2483.5 2000 - 500 -88@2Mbps 28 20 160@20dBm QFN 48
A81X01F4003AQ5A 8051 CPU 16 KB Flash 512 B 8 UART 2Ch, 8bit;
RSSI, 8bit
16 bits FSK/GFSK 2400 - 2483.5 2000 - 500 -88@2Mbps 28 20 160@20dBm QFN 48
A9101 Wireless
Audio SoC
A91X01F4000AQ6C 8051 CPU 16 KB Flash 512 B 24 I2C, SPI, UART,
PWM x2
4Ch, 8bit 16 bits FSK/GFSK 315 - 915 2000 - 500 -94@500kbps
@915MHz
20 18 100@18dBm QFN 48
A8301 Wireless
Audio TX SoC
A83X01F4006AQ6C 8051 CPU 16 KB Flash 512 B 16 I2C, SPI, UART,
PWM x2
2Ch, 8bit
RSSI, 8bit
16 bits FSK/GFSK 2400 - 2483.5 2000 - 500 - - 19.5 13@19.5dBm QFN 40
A83X01F4007AQ58 8051 CPU 16 KB Flash 512 B 8 UART 2Ch, 8bit
RSSI, 8bit
16 bits FSK/GFSK 2400 - 2483.5 2000 - 500 - - 19.5 13@19.5dBm QFN 32
